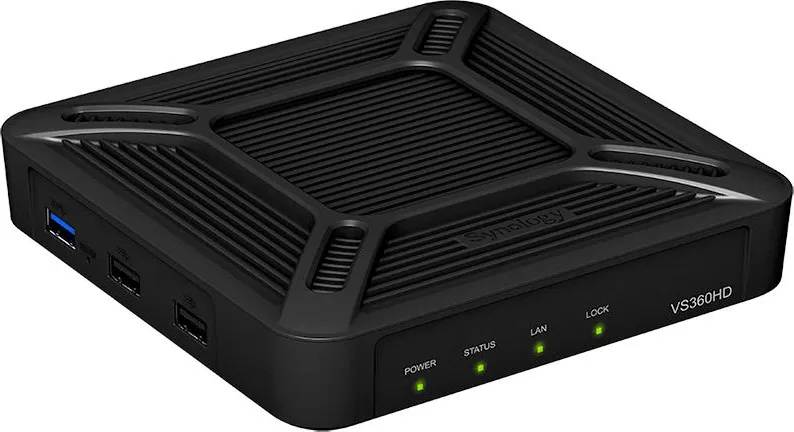

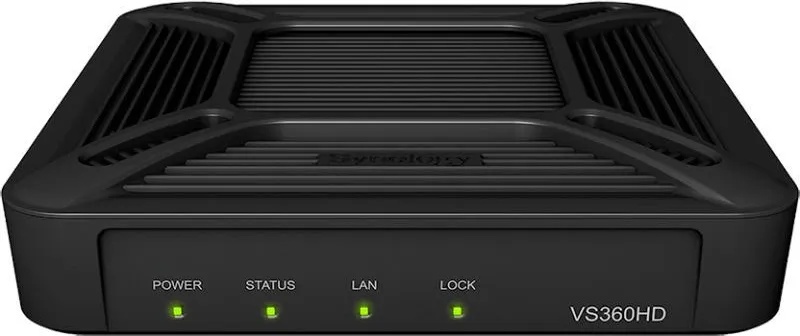

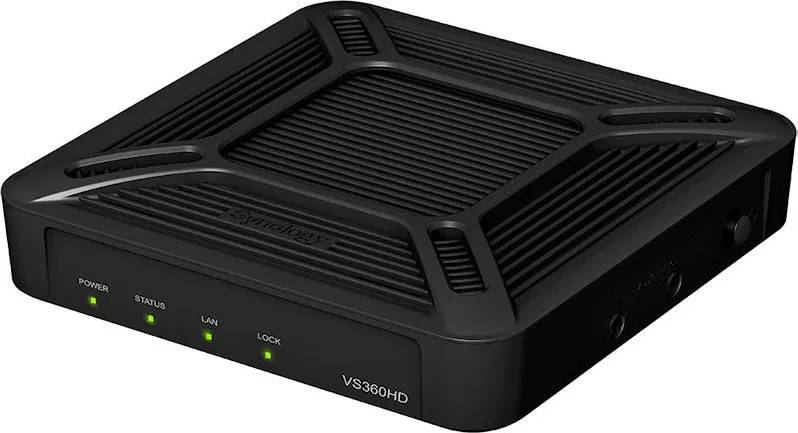

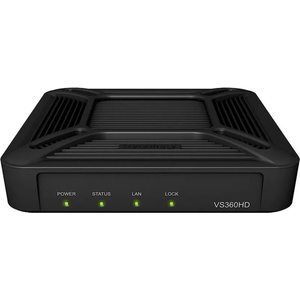

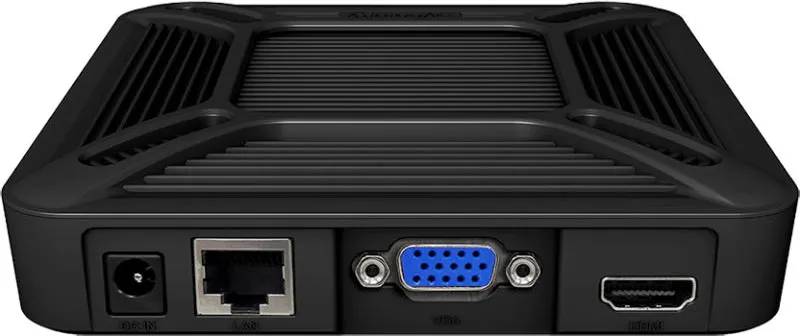

VS360HD Ultra compact PC-less live view and playback solution Paired with any Synology NVR server, VisualStation VS360HD, a video decoder, allows you to create an amazingly compact monitoring and playback station for your local teams —without a computer. VS360HD is ideal for deployments in harsh environments and where space is limited. In addition, it allows the main recording servers to remain hidden from prying eyes. VS360HD includes HDMI and VGA output to display video feeds, supporting 720p at up to 36 channels/360FPS or even 5 megapixels with fewer channels/FPS. Convenient live view and playback interfaceThanks to the versatile features of Surveillance Station, VS360HD is suitable for both beginner and advanced users. The intuitive interface ensures easy access to the most common functions, such as Live View, Customizable Layout, and Timeline. The Recording List allows you to browse and export recordings. With a few simple clicks, useful camera angles can be saved and grouped together to form Patrol cycles. Easy to setup, easy to useTo setup VS360HD, simply pair it with a Synology NAS running Surveillance Station 7.0 and onwards. With VS360HD, you can watch up to 36-channel live feeds in H. 264. VS360HD is also compatible with MJPEG or MPEG4 video format1. When you turn it on, you are taken directly to the Live View panel, so you can perform PTZ actions, or switch to Timeline to watch recorded events, take snapshot, and export to an external storage device, all by using a USB mouse. Ideal for TV wall setupTV walls are ideal for monitoring a massive amount of cameras at a glance. Thanks to the dual video output, you can connect multiple VS360HD units to a KVM switch to create a cost-efficient, easy to setup, and scalable TV wall. Achieve flexibility through rich connectivityDespite its small form factor, VS360HD packs a multitude of ports for guaranteed flexibility. With the USB 3.0 and 2.0 ports, it’s easy to connect a drive and save video recordings or snapshots. With a total of three USB ports, the VS360HD can be plugged to a mouse, keyboard, and even a joystick2 for PTZ control.  Hardware SpecificationsVideo OutputsVideo Output VGA X 1, HDMI X 1Supported Video Resolution 1080p 60HzAudio Input 3.5 mm Stereo Audio Jack x 1Audio Output 3.5 mm Stereo Audio Jack x 1USB 2.0 Port 2USB 3.0 Port 1AppearanceSize 32 mm x 130 mm x 130 mmWeight 0.3 kgOthersRJ-45 1GbE LAN Port 1Power Supply Unit / Adapter 36W AC Input Power Voltage 100V to 240V ACPower Frequency 50/60 Hz, Single PhasePower Consumption* 4.76W (36ch full-load)
3.61W (Power on Idle)EnvironmentOperating Temperature -20°C to 50°C (-4°F to 122°F)Adapter Operating Temperature 0°C to 40°C (32°F to 104°F)Storage Temperature -20°C to 60°C (-4°F to 140°F)Relative Humidity 5% to 95% RHCertification

• FCC Class B
• CE Class B
• BSMI Class B
• EN50155
• EN45545
Warranty 3 YearsSoftware SpecificationsMaximum IP cam 36Total FPS (H. 264)* 360 FPS @ 720p (1280x720), 36 Channels
160 FPS @ 1080p (1920×1080), 16 Channels
90 FPS @ 3M (2048x1536), 9 Channels
60 FPS @ 5M (2591x1944), 6 ChannelsTotal FPS (MJPEG)* 150 FPS @ 720p (1280x720), 15 Channels
40 FPS @ 1080p (1920×1080), 4 Channels
20 FPS @ 3M (2048x1536), 2 Channels
10 FPS @ 5M (2591x1944), 1 ChannelVideo Compression Format
• MJPEG
• MPEG-4
• H. 264
Audio Codec
• PCM
• ADPCM
• G711
• G726
• AMR
• AAC
Live View / Recording Playback  Snapshot Support  eMap Support  PTZ Control / Patrol  Log Viewer  Notes
• VisualStation throughput is tested with Axis P1347 (H. 264@1280x720@10FPS).
• The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS360HD supports for live view display.
Environment & PackagingEnvironment RoHS CompliantPackaging Content
• Main Unit X 1
• Quick Installation Guide X 1
• AC Power Adapter X 1
• RJ-45 LAN Cable X 1
• VESA mounting kit


Продукт известен още и като VS 360 HD, VS 360HD, VS360 HD
