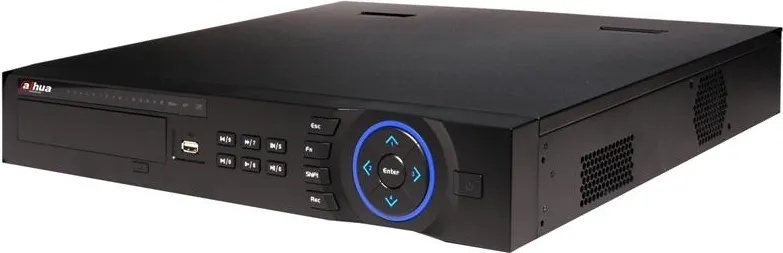

32 канален мрежов рекордер.

Поддържа 4 x SATA /до 4TB диск/, 1 eSATA до 16TB. Linux OS. H. 264/MJPEG dual codec decoding, Max bandwidth 200Mbps за всички канали.

Работа с камери до 5MP резолюция.

Едновременно възпроизвеждане на 16 камери. 1 аудио вход/1 аудио изход. 16 алармениалармени входа/4 алармени изхода.

Локален мониторен изход VGA 1080p; HDMI 1080P.

Различни режими за настройка на записа - непрекъснат, ръчен, при движение, PTZ контрол, back-up през USB, IE, CMS; 2 USB порта, RS232, RS485. CMS (Central Management Software), наблюдение през мобилен телефон /iPhone, iPad, Android, Windows Phone/, до 128 потребителя едновременно онлайн.

Поддържа ONVIF Version 2.3 conformance. Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.

Управление с мишка.

Support P2P. AC 100V~240V, 50/60HZ, 40W.

Размери 440mm×410mm×70mm.



Model


DH-NVR4432

System

Main Processor
Dual-core embedded processor

Operating System
Embedded LINUX

Video & Audio

IP Camera Input


32 channel

Two-way Talk
1channel Input, 1channel Output, RCA

Display

Interface
1 HDMI, 1 VGA, 1 BNC

Resolution
1920×1080, 1280×1024, 1280×720, 1024×768

Display Split


1/4/8/9/16

OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression
H. 264/MJPEG

Resolution
5Mp2560×1920/3Mp2048×1536/1080P(19 20×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.

Record Rate
200Mbps

Bit Rate
48~ 8192kbps

Record Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips

Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input
16 channel

Relay Output
4 channel

Playback & Backup

Sync Playback


1/4/8/16

Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode
USB Device/Network/Internal SATA burner/eSATA Device

Network

Ethernet
1 RJ-45 port (10/100/1000Mbps)

Network Function
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc. )

Max. User Access
128users

Smart Phone
iPhone, iPad, Android

Storage

Internal HDD
4 SATA ports, up to 16TB

External HDD
1 eSATA port

Auxiliary Interface

USB
2 ports (1 Rear USB3.0, 1 Front USB2.0)

RS232
1 port, For PC communication&Keyboard

RS485
1 port, For PTZ control

General

Power Supply
AC 100V~240V, 50/60HZ

Power Consumption
40W(without HDD)

Working Environment
-10°C ~+55°C / 10%~90%RH / 86~106kpa

Dimension

(W×D×H)
1.5U, 440mm×413mm×75mm

Weight
6KG(without HDD)



Продукт известен още и като NVR 4432
